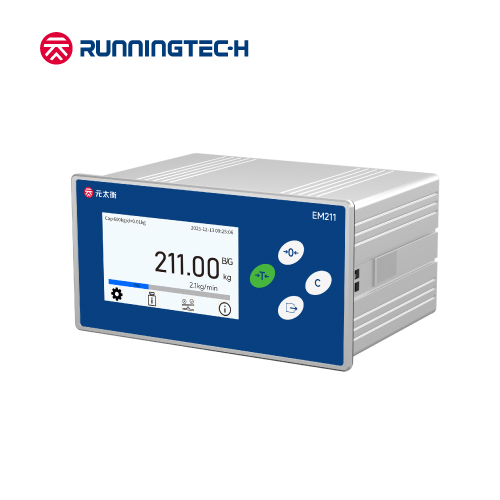

EM211 Weight Indicator and controller

EM211 Weight Indicator and controller：

Product description:

EM211 is an industrial-grade process control weight indicator, which is applied in dynamic weighing. Equipped with a variety of PLC bus interfaces, which provides humanized HMI interface, it is convenient for the special weighing applications.



Key features:

• Certification accuracy：6000e

• Color screen display：4.3" TFT full color touch screen

• Compact structure：Panel structure convenient to embed in electrical cabinet

• Common Communication interface：Standard isolated RS232 and isolated RS485; CAN, LAN,  discrete I/O port, 4 inputs and 4 outputs. Optional analog output, 4~20mA/0~10V；discrete I/O port, 8 inputs and 8 outputs.

• PLC fieldbus interface: Profibus-DP, CC-Link, Profinet, EtherNet/IP, Modbus-RTU, Modbus-TCP

• Typical application：basic weighing, check weighing, filling/dosing, lose-in-weigh application programming.

Contact
  • SPECIFICATIONS
  • DRAWING
  • DATA SHEET
  • APPROVALS
    Product modelEM211
    AC Power100~240VAC
    Operating temperature-20~+60
    Display screen4.3 "TFT full color screen
    Number of verification scale intervals (e)6000
    Number of  scale intervals for indicator (d)100000
    Number of sensorsUp to 6 350 Ohm load cells (2 or 3mV/V)
    AD sampling rate1000Hz
    Load cell Excitation5VDC
    Minimum sensitivity0.5 μV/e
    Accuracy classⅢ
    KeyPad4 key control
    Communication protocolCommand output, continuous output,Modbus RTU,Modbus TCP
    Calibration methodWeight calibration; Weight-free calibration; Remote calibration
    Scale1
    Capacity1-500,000kg (default60)
    Increment size0.0001/0.0002/0.0005
    0.001/0.002/0.005
    0.01/0.02/0.05 (default0.01)
    0.1/0.2/0.5
    1/2/5
    10/20/50/100
    Baud rate1200，2400，4800，9600 (default) 19200，38400，57600，115200
    DIO interface4 inputs (optocoupler isolation) /4 outputs (relays, transistors)
    Serial1 way  RS485 (isolation)
    1 way  RS232 (isolation)
    1 way CAN (isolation)
    Ethernet interface※Port rate 10Mbps/100Mbps adaptive
    Analog quantity ※1 way 4-20mA or 0-10v
    DIO interface expansion board※8 inputs (optocoupler isolation) /8 outputs (relays, transistors)
    Communication interface board※PROFINET、EtherNet/IP、Profibus-DP、CC-Link

    Note:The list marked with ※ is optional, customers need to purchase separately.
