Product description:

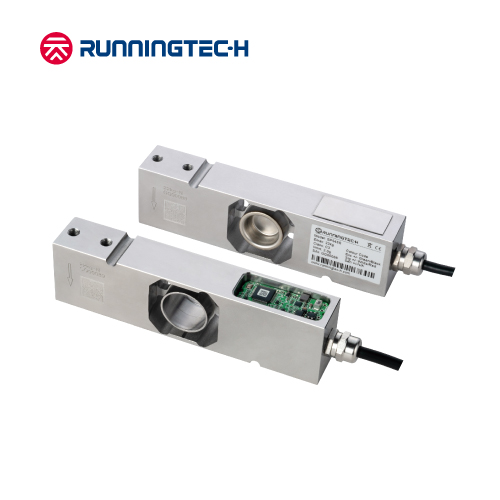

SP546SD is a true digital single-point load cell with an accuracy of C6. The built-in microprocessor actively monitors environmental changes, continuously compensates for various performances in real time, and indicates the parameter status of each load cell, ensuring the weighing result more accurate and stable. The hermetically sealing process ensures high sealing performance and can work normally in harsh industrial environments.
Main Features:
• Material: Stainless steel
• Rated Capacities: 11kg~100kg
• OIML R60 C6 (pending), NTEP HB44, CPA C6 (pending), CE and RoHS certified
• IP Rating: IP68, IP69K
• Suitable for stainless steel waterproof scales, process weighing control in chemical, food and pharmaceutical industries.
• Max. platform size: 300x400mm
• Built-in real-time self-compensation microprocessor, high accuracy up to OIML R60 C6 and high reliability.
| Parameter | Units | Specification | ||||
| Model No. | SP546SD | |||||
| Rated capacity (R.C.)4) | kg | 11 | 22 | 60 | 100 | |
| Sensitivity at R.C. | d @ R.C. | 200,000 | ||||
| Accuracy class1)2) | C3 C6 | |||||
| Min. dead load | kg | 0 | ||||
| Zero balance | % of Emax | ± 1 | ||||
| Y-value | 10000 15000 | |||||
| Repeatability error | % of AL 3) | ＜ ± 0.010 ＜ ± 0.005 | ||||
| Creep; 30 minute | % of AL | ＜ ± 0.0167 ＜ ± 0.0083 | ||||
| Min. dead load output return (DR); 30 min | % of AL | ＜ ± 0.0167 ＜ ± 0.0083 | ||||
| Temp. effect on | Min. dead load output | % of Emax/℃ | ＜ ± 0.0016 ＜ ± 0.00107 | |||
| Rated output 2) | % of AL/℃ | ＜ ± 0.00133 ＜ ± 0.00066 | ||||
| Temperature range | Compensated | ℃(°F) | -10 to +40 [+14 to +104] | |||
| Operating | -20 to +65 [-4 to +149] | |||||
| Safe storage | -40 to +80 [-40 to +176] | |||||
| Effect of Cable Length on System Accuracy | kg | 0（Digital） | ||||
| Communication | Mode | CAN | RS485 | |||
| Protocol | CANopen | Modbus RTU | ||||
| Transmittion rate | 125 / 250 kbps | 9600bps / 57600bps | ||||
| Effective refresh rate | HZ | 50（1piece load cell,125kbps） | 20（1piece load cell,9600bps） | |||
| Excitation voltage | Recommended | V AC/DC | 12 or 24 | |||
| Minimum / Maximum | 7.5 / 28 | |||||
| Excitation current | Typical value | mA | 20 | |||
| Max. value | 150 | |||||
| Warm-up time | mins | 15 | ||||
| Surge protective device | Integral (GDT+TVS) | |||||
| Insulation resistance @50VDC | MΩ | ＞5000 | ||||
| Breakdown voltage | V AC | ＞500 | ||||
| Protection | Type | Hermetically sealing | ||||
| IP rating | IP68/69K | |||||
| Load limit | Safe dynamic load | % of Emax | 70 | |||
| Safe | 150 | |||||
| Ultimate | 300 | |||||
| Material | Spring element | stainless steel | ||||
| Connectors | Quick-Connect with bayonet lock, 5 Pins,Glass-to-Metal seal | |||||
| Strain gauge | PEEK | |||||
| Cable construction | fireretardant and cold-resistant PVC, 6mm O.D. ; 4 Conductors triple shielded wires | |||||
| Max. platform size | mm | 400*400 | ||||
| Eccentric error（OIML R76） | % of AL/cm | ＜ ± 0.0028 | ||||
| Cable length | m | 2.5 / 5 (standard configuration) | ||||
| Weight; approx | kg | 1.0 | ||||
| Fatigue life | times @Emax | ＞1,000,000 | ||||
| Deflection at Emax; approx | mm | ＜0.5 | ||||
| Barometric pressure effect on Zero Output | Vmin/kPa | ＜1.0 | ||||
| Fixing bolts | Size/ class | M6-8.8 | ||||
| Recommended tightening torque | N.m | 10 | 15 | |||
| Notes: | ||||||
| 1) Error due to the combined effect of non-linearity and hysteresis | ||||||
| 2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44 | ||||||
| 3) AL = Applied Load | ||||||
| 4) R.C. = Rated Capacity | ||||||
