Product description:

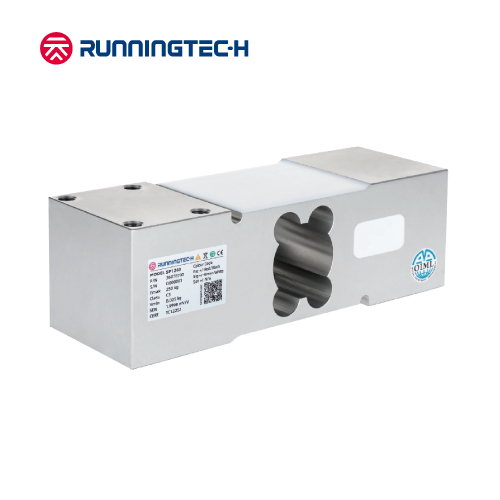

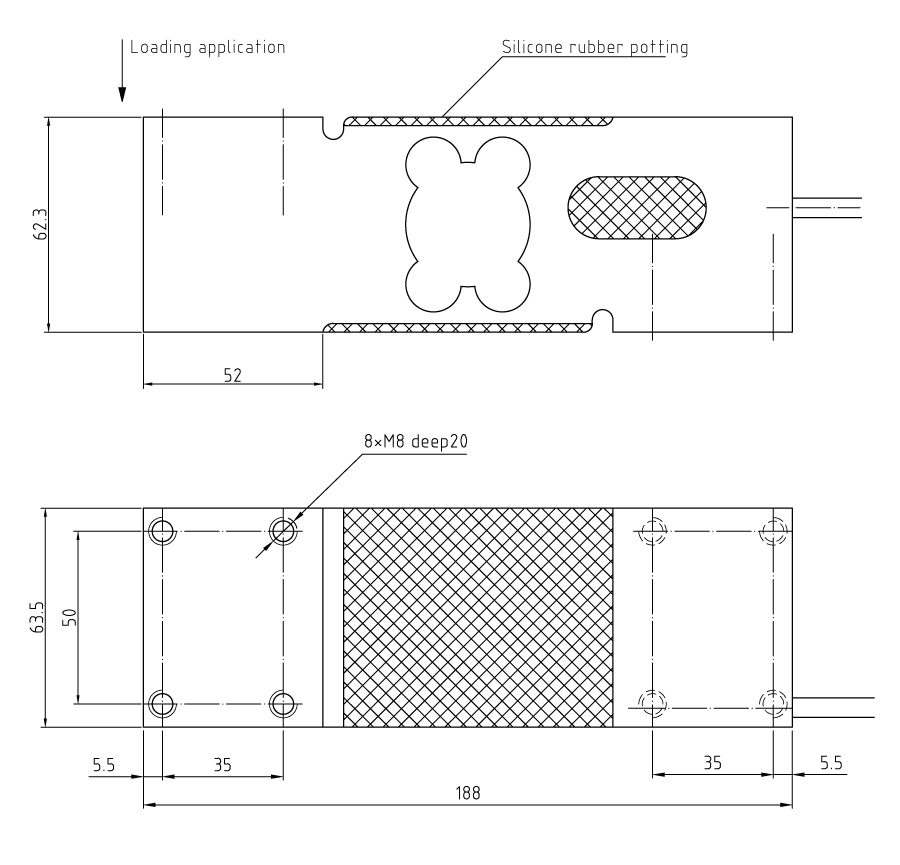

SP1260 is a typical and standard aluminum single point load cell that is with large capacity by 750kg and ideal for a wide range of weighing equipment. Environmentally sealed with potting compound to ensure reliability and durability. The industry standard size and mounting hole configuration makes the SP1260 is suitable for large-size platform by 600*600mm, or as a replacement for existed weighing equipment.
Except for common applications of weighing equipment, it is also can be used for force measurement for controlling.
Main Features:
• Material: Aluminum
• Rated Capacities: 100kg~750kg
• OIML R60, NTEP HB44, CPA, CE and RoHS certified
• IP Rating: IP66
• Suitable for single and double load cell structural platform scales
• Max platform size: 600*800mm
| Parameter | Units | Specification | |
| Model No. | SP1260 | ||
| Rated capacity (Emax) | kg | 100 / 150 / 250 / 500 / 750 | |
| Accuracy class | C3 C6 | ||
| Min. dead load | kg | 0 | |
| Rated output | mV/V | 2.0 ± 0.2 | |
| Zero balance | % of Emax | ＜ ± 2.0 | |
| Repeatability error | % of AL 3) | ＜ ± 0.010 ＜ ± 0.005 | |
| Creep; 30 minute | % of AL | ＜ ± 0.017 ＜ ± 0.0083 | |
| Min. dead load output return (DR); 30 min | % of AL | ＜ ± 0.017 ＜ ± 0.0083 | |
| Temp. effect on | Min. dead load output | % of Emax/℃ | ＜ ± 0.0020 ＜ ± 0.0014 |
| Rated output 2) | % of AL/℃ | ＜ ± 0.0012 ＜ ± 0.0006 | |
| Temperature range | Compensated | ℃(°F) | -10 to +40 [+14 to +104] |
| Operating | -10 to +50 [+14 to +122] | ||
| Safe storage | -30 to +70 [-22 to +158] | ||
| Excitation voltage | Recommended | V AC/DC | 5 ~ 15 |
| Maximum | 15 | ||
| Terminal resistance | Excitation | Ω | 403 ± 5 |
| Output | 350 ± 3 | ||
| Insulation resistance @50VDC | MΩ | ＞5000 | |
| Breakdown voltage | V AC | ＞500 | |
| Seal type / IP rating | potted silicon sealed / IP66 | ||
| Load limit | Safe | % of Emax | 150 |
| Ultimate | 300 | ||
| Material | Spring element | Aluminum, anodizing | |
| Cable | Φ5.6; 4-wire; PVC | ||
| Cable length | m | 3.0 | |
| Maximum platform size | mm | 600*800 | |
| Offer center load error (OIML R76) | % of AL/cm | ＜ ± 0.0016 | |
| Fatigue life | cycles@Emax | ＞1,000,000 | |
| Deflection at Emax; approx | mm | ＜0.5 | |
| Weight; approx | kg | 1.8 | |
| Barometric pressure effect on Zero Output | Vmin/kPa | ＜1.0 | |
| Mounting screw | Size/Grade | M8 / 8.8 | |
| Recommended torque | N.m | 100-250kg: 25; 500-750kg: 30 | |
| Notes: | |||
| 1) Error due to the combined effect of non-linearity and hysteresis | |||
| 2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44 | |||
| 3) AL = Applied Load | |||
