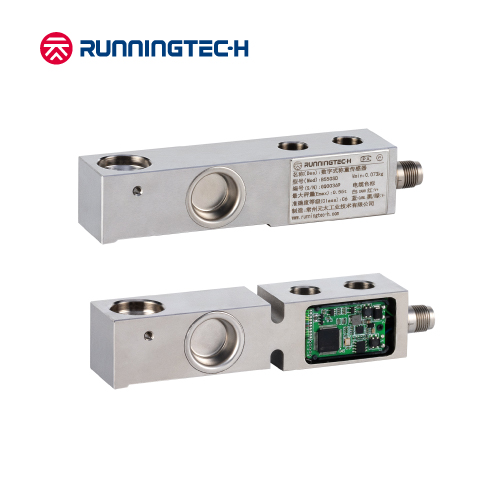

The B550SD series is a digital single-ended shear beam load cell with a precision of C10. They can be daisy-connected and does not require a junction box. The built-in microprocessor actively monitors environmental changes, continuously compensates for various performances in real time, and indicate the parameter status of each load cells, ensuring the weighing results more accurate and stable. The hermetically sealing process ensures high sealing performance and can work normally in harsh industrial environments.
Main Features:
• Material: high-quality stainless steel
• Rated Capacities: 550kg~4.4t
• CPA C8, CE and RoHS certified
• IP Rating: IP68, IP69K
• Suitable for platform scales, dosing system and process control in chemical,food,pharmaceutical and other industries.
• Built-in real-time self-compensation microprocessor, high accuracy up to OIML R60 C10 and high reliability
• B750S with 17-4PH material and PEEK strain gauge from HBK.
| Parameter | Units | Specification | ||||||
| Model No. | B550SD/B750SD | |||||||
| Rated capacity (R.C.)4) | t | 0.22 | 0.55 | 1.1 | 2.2 | 4.4 | ||
| Sensitivity at R.C. | d @ R.C. | 440,000 | 550,000 | 550,000 | 440,000 | 440,000 | ||
| Communication | Controller Area Network (CAN), Encrypted | |||||||
| Communication rate | kbit/sec | 125 | ||||||
| Accuracy class | C3 C6 C10 | |||||||
| Min. dead load | kg | 0 | ||||||
| Zero balance | % of Emax | ＜ ± 1 | ||||||
| Y-value | 10000 15000 20000 | |||||||
| Repeatability error | % of AL 3) | ＜ ± 0.010 ＜ ± 0.005 ＜ ± 0.003 | ||||||
| Creep; 30 minute | % of AL | ＜ ± 0.0167 ＜ ± 0.0083 ＜ ± 0.0050 | ||||||
| Min. dead load output return (DR); 30 min | % of AL | ＜ ± 0.0167 ＜ ± 0.0083 ＜ ± 0.0050 | ||||||
| Temp. effect on | Min. dead load output | % of Emax/℃ | ＜ ± 0.0016 ＜ ± 0.00107 ＜ ± 0.0008 | |||||
| Rated output 1)2) | % of AL/℃ | ＜ ± 0.00133 ＜ ± 0.00066 ＜ ± 0.0004 | ||||||
| Temperature range | Compensated | ℃(°F) | -10 to +40 [+14 to +104] | |||||
| Operating | -40 to +65 [-40 to +149] | |||||||
| Safe storage | -40 to +80 [-40 to +176] | |||||||
| Excitation voltage | Recommended | V AC/DC | 12 or 24 | |||||
| Minimum / Maximum | 7.5 / 28 | |||||||
| Surge protective device | Integral (GDT + TVS) | |||||||
| Insulation resistance @50VDC | MΩ | ＞5000 | ||||||
| Breakdown voltage | V AC | ＞500 | ||||||
| Protection | Type | Hermetically welded (submersible) | ||||||
| IP rating | IP68/69K | |||||||
| Load limit | Safe dynamic load | % of Emax | 70 | |||||
| Safe | 150 | |||||||
| Ultimate | 300 | |||||||
| Material | Spring element | Stainless steel [B750SD: 17-4 PH] | ||||||
| Enclosure | 316 stainless steel, laser welded | |||||||
| Connectors | Quick-Connect with bayonet lock, 5 Pins,Glass-to-Metal seal | |||||||
| Strain gauge | PEEK [B750SD: HBK] | |||||||
| Cable | PVC chemically resistant jacket, 6mm O.D. ; 5 Conductors | |||||||
| Cable length | Cell to cell | m | 2 (Typical) | |||||
| Network | No junction boxes | |||||||
| Weight; approx | kg | 0.22~1.1t | 2.2t | 4.4t | ||||
| 1.0 | 1.4 | 4.0 | ||||||
| Fatigue life | cycles @Emax | ＞1,000,000 | ||||||
| Deflection at Emax; approx | mm | ＜0.5 | ||||||
| Barometric pressure effect on Zero Output | Vmin/kPa | ＜1.0 | ||||||
| Mounting screw | Size/Grade | M12 / A2-70 | M12 / A2-70 | M18 / A2-70 | ||||
| Recommended torque | N.m | 98 | 120 | 275 | ||||
| Notes: | ||||||||
| 1) Error due to the combined effect of non-linearity and hysteresis | ||||||||
| 2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44 | ||||||||
| 3) AL = Applied Load | ||||||||
| 4) R.C. = Rated Capacity | ||||||||
