Product description:

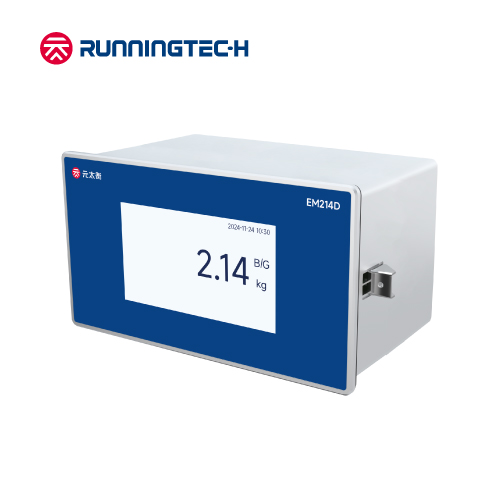

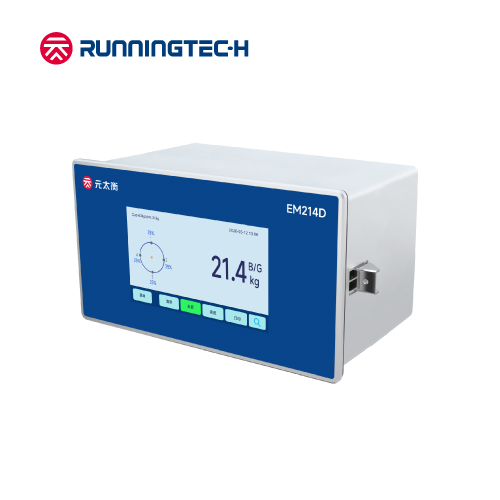

EM214D is an industrial-grade weighing indicator & controller, communicate with Runnintech's digital load cells,, weighing is more accurate and stable.With 5' IPS color display, the operation is convenient. It supports Chinese or English display and configuration menu.
What's more, multi-channel digital IO and various industrial field bus provided.It can be used to many industry weighing fields.
Key features:
• Display： 5' IPS color display with touch
• Easy to use： English/Chinese menu
• Install： Panel-mounted
• Shift adjust: auto shift adjust
• Load cell inforamtion: Query and Diagnosis
• Ports（Standard configuration)：Isolated RS232,RS485, Ethernet; digital IO, 4inputs and 4outputs
• Digital IO extend: 8 inputs and 8 outputs
• Analog output：4~20mA、0~10V
• Industry Field bus：PROFINET, EtherNet/IP, CC-Link IE
• Weighing scenarioes：With weinging application firmware,applied to Fill/Dose, Package, Check weigh, Lost in weigh
| Product Model | EM214D |
| Power | 100-240VAC/49-60HZ |
| Usage temperature(℃) | -20~+60 |
| Display screen | 5‘’ IPS TFT Color Screen with Touch |
| Number of verification scale intervals (d) | 10000 |
| Number of indication scale intervals (d) | 100000 |
| Max number of load cell | Up to 4 Runingtech's digital load cells |
| Interface with digital load cell | CAN |
| Protocol | CANOpen |
| Encrypting digital load cell | support data encryption |
| Accuracy class | Ⅲ |
| Addresing | auto or manual |
| Calibration method | Weight calibration, Remote calibration, calfree calibration |
| Corner errort correcting | Mechanical shift adust、Electronic auto shift adjust |
| Digital load cells' information | Availabe for uery and diagnosis, display internal counts of each load cell |
| Capacity | 1-500,000kg（60kg default） |
| Increment | 0.001/0.002/0.005/0.01/0.02/0.05 （default 0.01） |
| 0.1/0.2/0.5/1/2/5 | |
| 10/20/50/100 | |
| Serial ports | 1 RS232,1 RS485; Supports command output, continuous output, Modbus-RTU |
| Ethernet | 1 Ethernet; It supports continuous output and Modbus-TCP |
| DIO | 4 input (optocoupler isolation) /4 output (relay contact） |
| Analog output | 4~20mA, 0~10V |
| DIO Extend board※ | 8 input (optocoupler isolation) /8output (relay contact） |
| Industrial Field bus board※ | PROFINET、EtherNet/IP、CC-Link IE |
| Enclosure material | Aluminium |
| Mounting mode | Panel-mounted into cabinet |
| Basic applications | All kinds of weighing scenarioes, e.g: Basic weighing, Packaging、Fill/Dose、Check weigh、Lost in weigh |
Note: The list marked with ※is optional, customers need to purchase separately
