Description：

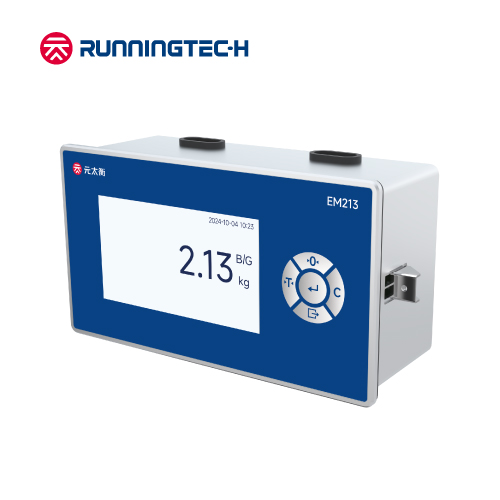

EM213D is an industrial-grade weighing indicator & controller, communicate with Runnintech's digital load cells, to achieve fast and accurate weighing; It support chinese or english menu configuration, comprehensive communication interfaces, Panel-mounted into cabinet, and widely used in industrial weighing fields.
Key features：
• Display： 5 inch color screen
• Keypad： 5-key of functions
• Menu configuration： Chinese and english version
• Mounting mode： Panel-mounted into cabinet
• Corner error correcting mode；Automatic
• Digital load cells' information: Query and diagnosis, check internal code, etc
• Digital IO：Standard configuration of 2 inputs /2 outputs
• Communication port： Standard configurations of RS232， RS485， EtherNet, analog output (4~20mA/0~10V）
| Product model | EM213D |
| DC Power | 100-240VAC/49-60HZ |
| Usage temperature | -20~+60 |
| Display screen | 5inch color screen |
| Number of verification scale intervals (d) | 10000 |
| Number of indication scale intervals (d) | 100000 |
| Number of load cells | Up to 4 Runingtech's digital load cells |
| Interface with digital load cell | CAN |
| Protocol | CANOpan |
| Encrypting digital load cell | Available |
| Accuracy class | Ⅲ |
| KeyPad | 5-key function keyboard |
| Communication protocol | Command output, continuous output, printing; Modbus-RTU, Modbus-TCP |
| Addressing | Automatic、manual |
| Calibration method | Weight calibration; Weight-free calibration; Remote calibration |
| Corner errort correcting | Mechanical adjustment, automatic adjustment via software |
| Digital load cells' information | Available for query and diagnosis, display internal counts of each load cell |
| Capacity | 1-500,000kg（Default 60kg） |
| Increment size | 0.001/0.002/0.005/0.01/0.02/0.05 （Default 0.01） |
| 10/20/50/100 | |
| Serial ports | 1way RS232, 1 way RS485 , 1 way EtherNet |
| Baud rate | 1200，2400，4800，9600（Default）,19200，38400，57600，115200 |
| DIO interface | 2 inputs (optocoupler isolation) /2 outputs (relay contacts) |
| Analog output | 4~20mA, 0~10V |
| Weighing Comparator | 4 ways |
| Enclosure material | Stainless steel |
| Mounting mode | Panel-mounted into cabinet |
| Basic application | Industrial weighing fields |
