Description：

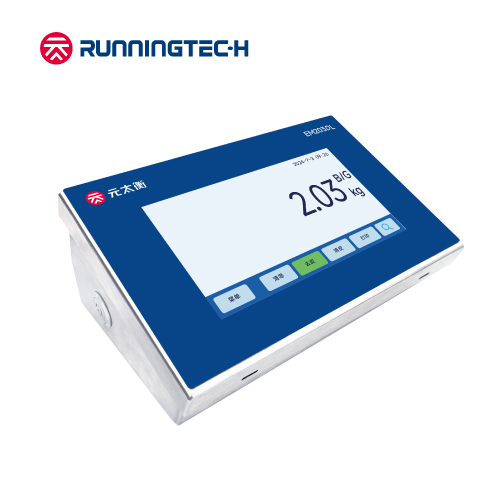

EM203DL industrial-grade digital weight indicator and controller with 7-inch touch color screen, communicate with Runningtech's digital load cells, weighing is faster and more accurate; 7-inch touch color display supports Chinese and English display and menu configuration; comprehensive communication interfaces are to meet user-specific needs, also can be applied to platform scale, process weighings, such as hopper scales, silo scales, etc.
Key features：
• Large display screen: 7 inch full touch color screen
• Menu configuration：English, chinese available, touch operation
• Corner error correct: active self-adapting via software
• Digital load cell informaton：ISN display, diagnosis, etc.
• Ports：Standard isolated RS232, RS485, LAN,
| Model No.: | EM203DL |
| Voltage | 100-240VAC/49-60HZ |
| Operation temp. (℃) | -20~+60 |
| Display screen | 7 inch touch color screen |
| Max. number of verified divisions（e） | 10000 |
| Max. number of display reslutions（d） | 100000 |
| Number of digital load cells | Max 4pcs digital load cell |
| Interface to digital load cell | CAN |
| Communication protocol | CANOpan |
| Encryption for digital load cell | Available |
| Accuracy class | Ⅲ |
| Keypad | Touch screenkey +power supply key |
| Communications | Instruction output；serial output；printing； Modbus-RTU, Modbus-TCP |
| Addressing load cells | Automatic、manually available |
| Calibration mode | weight calibration；remote calibration；free calibration |
| Corner error correcting | Adjust via weights、self-adapting via software |
| Digital load cell information | ISN display & checking and diagnosis available |
| Capacity range | 1-500,000kg（default 60kg） |
| Verification value | 0.001/0.002/0.005/0.01/0.02/0.05 （default 0.01） |
| 0.1/0.2/0.5/1/2/5 | |
| 10/20/50/100 | |
| Ports | 1 channel RS232, 1 channel RS485，1 channel EtherNet |
| Baud rate | 1200，2400，4800，9600（default）,19200，38400，57600，115200 |
| DIO ports | 2-channel input （Optocoupler isolation）/4-channel output（relay contacts） |
| weight comparator | 4-channel |
| Enclosure material | Stainless steel |
| Mounting style | Wall-mounted via angle-adjusted stand, desk-placed or column sit |
| Basic applications | Basic weighing, checkweigher, sorting, counting.Accumulation etc |
