Description：

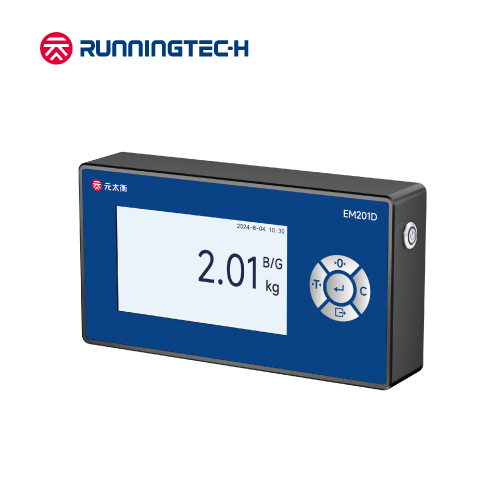

EM201D industrial-grade digital weight indicator and controller with 5inch color screen, communicate with Runningtech's digital load cells, weighing is faster and more accurate; 5-inch color display supports Chinese and English display and menu configuration; comprehensive communication interfaces are to meet user-specific needs, also can be applied to bench scales, platform scales, etc.
Key features：
• Large 5 " full color screen display：digit 40mm height，
• Corner error correct: active self-adapting via software
• Digital load cell informaton：ISN display, diagnosis, etc.
• Ports：Standard isolated RS232, RS485, LAN,Standard digital I/O, 2-channel inputs and 2-channel outputs. Analog output (4-20mA/0-10V)
• Rechargeable battery: optional 10Ah rechargeable lithium battery
| Model No.: | EM201D |
| Voltage | 12VDC (Adapter 220V AC/DC default) |
| Battery capacity※ | 10Ah |
| Operation temp. (℃) | -20~+60 |
| Display screen | 5 inch color screen |
| Max. number of verified divisions（e） | 10000 |
| Max. number of display reslutions（d） | 100000 |
| Number of digital load cells | Max 4pcs digital load cell |
| Interface to digital load cell | CAN |
| Communication protocol | CANOpen |
| Encryption for digital load cell | Available |
| Accuracy class | Ⅲ |
| Keypad | 5pcs function key+power supply key |
| Communications | Instruction output；serial output；printing； Modbus-RTU, Modbus-TCP |
| Addressing load cells | Automatic、manually available |
| Calibration mode | weight calibration；remote calibration；free calibration |
| Corner error correcting | Adjust via weights、self-adapting via software |
| Digital load cell information | Checking and diagnosis available |
| Capacity range | 1-500,000kg（default 60kg） |
| Verification value | 0.001/0.002/0.005/ 0.01/0.02/0.05（default 0.01） |
| 0.1/0.2/0.5/1/2/5 | |
| 10/20/50 | |
| Ports | 1 channel RS232, 1 channel RS485，1 channel EtherNet |
| Baud rate | 1200，2400，4800，9600 (Default) 19200，38400，57600，115200 |
| DIO ports | 2-channel input （Optocoupler isolation）/2-channel output（relay contacts） |
| Analog output | 4~20mA, 0~10V |
| weight comparator | 4-channel |
| Enclosure material | Stainless steel |
| Mounting style | Wall-mounted via angle-adjusted stand, desk-placed or column sit |
| Basic applications | Basic weighing, checkweigher, etc. |
Note: The list marked with ※ is optional, customers need to purchase separately
