Product description:

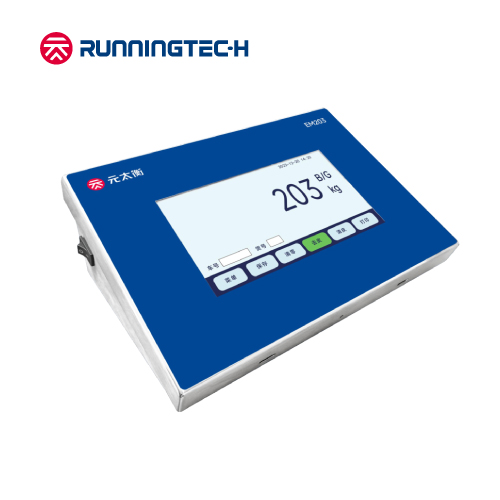

EM203D industrial-grade digital weight indicator and controller with 10inch TFT color touch screen, intuitive icons and graphics indications and marked shortcut keys of operations, comprehensive ports, available records of sets of truck licence numbers and weighing data.
Key features:
• Large screen display：10 " full color touch screen，Certification accuracy：6000e
• Menu configuration：English, Chinese available，Touch screen operation
• Physical design：Large stainless steel dustproof enclosure, desk-sit for easy operation
• Digital load cells：support multiple digital load cells via CAN ports
• Ports：Standard isolated RS232, RS485, CAN, Ethernet，Standard digital I/O, 2-channel inputs and 4-channel outputs.
• Flexible application：Basic weighing, truck scale(weighbridge), hopper scales, silo scales, vessel scales, etc.
| Model No. | EM203D |
| Voltage | 100-240VAC/49-60HZ |
| Operation temp. (℃) | -20~+60 |
| Display screen | 10 inch color screen |
| Max. number of verified divisions（e） | 4000 |
| Max. number of display reslutions（d） | 100000 |
| Number of digital load cells | Max. 10pcs |
| Interface to digital load cell | CAN |
| Communication protocol | CANOpan |
| Encryption for digital load cell | Available |
| Accuracy class | Ⅲ |
| Keypad | Touch screen+power supply key |
| Communications | Instruction output；serial output；printing； Modbus-RTU, Modbus-TCP |
| Addressing load cells | Automatic、manually available |
| Calibration mode | Weight calibration；remote calibration；free calibration |
| Corner errort correcting | Adjust via weights、self-adapting via software |
| Digital load cell information | Checking and diagnosis available |
| Capacity range | 1-500,000kg（Default 40000） |
| Verification value | 0.1/0.2/0.5 |
| 1/2/5 | |
| 10/20/50（Default 10） | |
| 100 | |
| Ports | 1 channel RS232, 1 channel RS485， 1 channel EtherNet |
| Baud rate | 1200，2400，4800，9600（Default）,19200，38400，57600，115200 |
| DIO ports | 2-channel input （Optocoupler isolation）/4-channel output（relay contacts） |
| Weight comparator | 4-channel |
| Data storage | Truck license plate numbe、tare、item number, 100 sets；weighing records 1000 set，cycling updating sequence |
| Enclosure material | Stainless steel |
| Mounting style | Wall-mounted via angle-adjusted stand, desk-placed or column sit |
| Typical applications | Basic weighing, truck scale (weighbridge) etc. |
